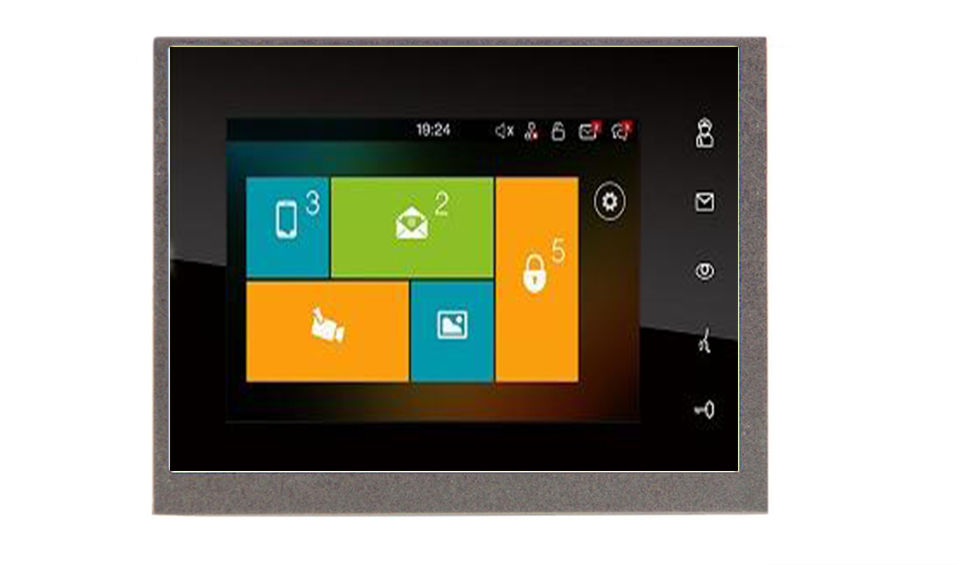

Name: INNOLUX original AT056TN53 V.1 5 Inch 640*480 TFT LCD Display
Brand: Heng Cheng Electronics Technology (HK) Co.,Ltd
SKU: AT056TN53 V.1
Availability: InStock

Détails de produit

Place of Origin: China

Nom de marque: HETECH

Certification: ISO9001,ISO14001,ISO13485,IATF16949

Model Number: AT056TN53 V.1

Conditions de paiement et d'expédition

Minimum Order Quantity: 100pcs

Delivery Time: 4-6weeks

Payment Terms: T/T

Supply Ability: 50K/month

Obtenez le meilleur prix

Détails de produit

Description de produit

Mettre en évidence:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                INNOLUX 5 inch TFT LCD display, AT056TN53 V.1 LCD screen, 640x480 resolution TFT display


P/N:	AT056TN53 V.1	Size:	5.6"(TN)
Display type:	(TN)	Resolution:	640*480
Outline dimension:	126.5(W )100(H)5.7(T)mm	Active area:	112.90(W)*84.67(H)mm
Brightness:	350cd/m2	Interface:	40pinRGB
Viewing angle:	70/70/50/70	Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃	Contrast ratio:	500
Aspect rati16:9o:	4:3	Application:	multi-functional intercom station and handheld NFC android POS terminal with printer

P/N:	AT056TN53 V.1
Size:	5.6"(TN)
Display type:	(TN)
Resolution:	640*480
Outline dimension:	126.5(W )100(H)5.7(T)mm
Active area:	112.90(W)*84.67(H)mm
Brightness:	350cd/m2
Interface:	40pinRGB
Viewing angle:	70/70/50/70
Operation Temp.:	-20~70℃
Storage Temp.:	-30~80℃
Contrast ratio:	500
Aspect rati16:9o:	4:3
Application:	multi-functional intercom station and handheld NFC android POS terminal with printer

INNOLUX original AT056TN53 V.1 5 Inch 640*480 TFT LCD Display

Product Specifications

Attribute	Value
P/N	AT056TN53 V.1
Size	5.6"(TN)
Display type	(TN)
Resolution	640*480
Outline dimension	126.5(W)100(H)5.7(T)mm
Active area	112.90(W)*84.67(H)mm
Brightness	350cd/m²
Interface	40pinRGB
Viewing angle	70/70/50/70
Operation Temp.	-20~70℃
Storage Temp.	-30~80℃
Contrast ratio	500
Aspect ratio	4:3
Application	Multi-functional intercom station and handheld NFC android POS terminal with printer

Product Description

AT056TN53 V.1 is a 5.6-inch TN display with an outline dimension of 126.5mm*100mm*5.7mm and active area of 112.9mm*84.67mm. It delivers clear, vibrant visuals with:

640*480 pixel resolution for sharp image quality
350-nit brightness for excellent visibility
500:1 contrast ratio for good depth and detail
40-pin RGB interface for high-speed data transfer
Wide operating temperature range (-20~70℃)

This technologically advanced display is ideal for multi-functional intercom stations and handheld NFC Android POS terminals with printer.

Pin Assignment

Product Drawings

5-inch LCD Display Series

If models listed below can't meet your requirements, customization can be made according to your specific requirements (not limited to LCM, RTP, CTP, driver board, etc.)

No.	Size	Part No.	LCD type	Resolution	Outline dimension	Active area	Interface	Contrast ratio	Brightness	Operation temperature	Storage temperature
1	5"	HC050IG25031-B04V01	IPS	800*480	120.775.82.9mm	108*64.8mm	40pinRGB	1000	250	-20~70℃	-30~80℃

Customization

Frequently Asked Questions

Q1. Can I have a sample order for LCD Display?

A: Yes, we welcome sample orders to test and check quality.

Q2. What about the lead time?

A: Usually 4-5 days for sample orders if goods are in stock, and 4-6 weeks for mass production (based on quantity and product).

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx.

Q4. How to proceed an order for LCD Display?

A: Process: 1) Share your requirements 2) We provide quote 3) Confirm samples 4) Place deposit 5) Production begins.

Q5. Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty for our products.

Q6. How to deal with the faulty?

A: Our defective rate is less than 0.2%. Within 1 year warranty (excluding human damage), we'll handle faulty products accordingly.
